Description:

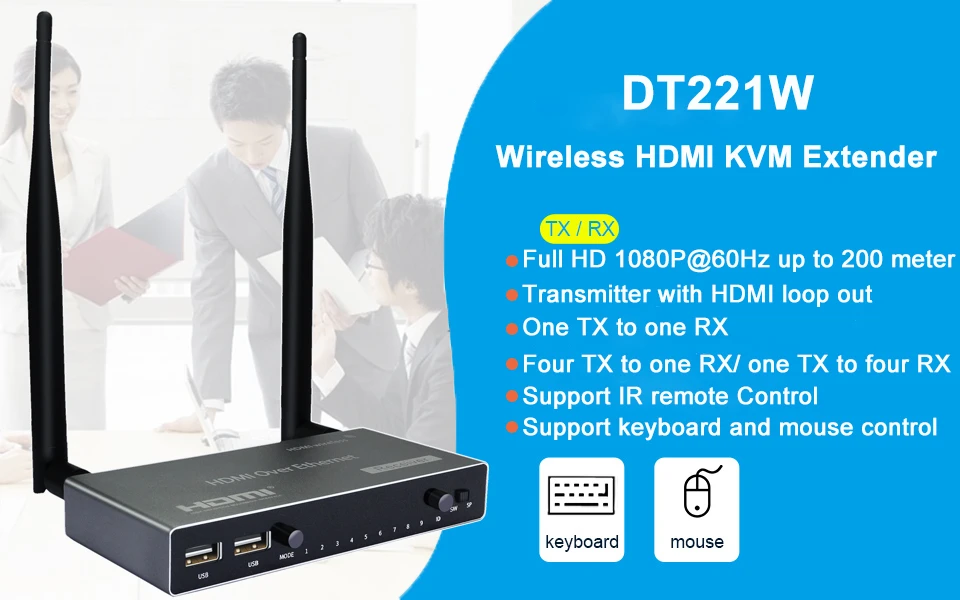

ZY-DT221W,Navceker Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 2.4GHz or 5.8GHz band, with very low latency.
It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.
This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.

Purchase notice:This wireless hdmi transmitter receiver do not support ship to Saudi Arabia,Because Saudi Arabia can not allow to import wireless device.please do not place the wrong order.

Features:

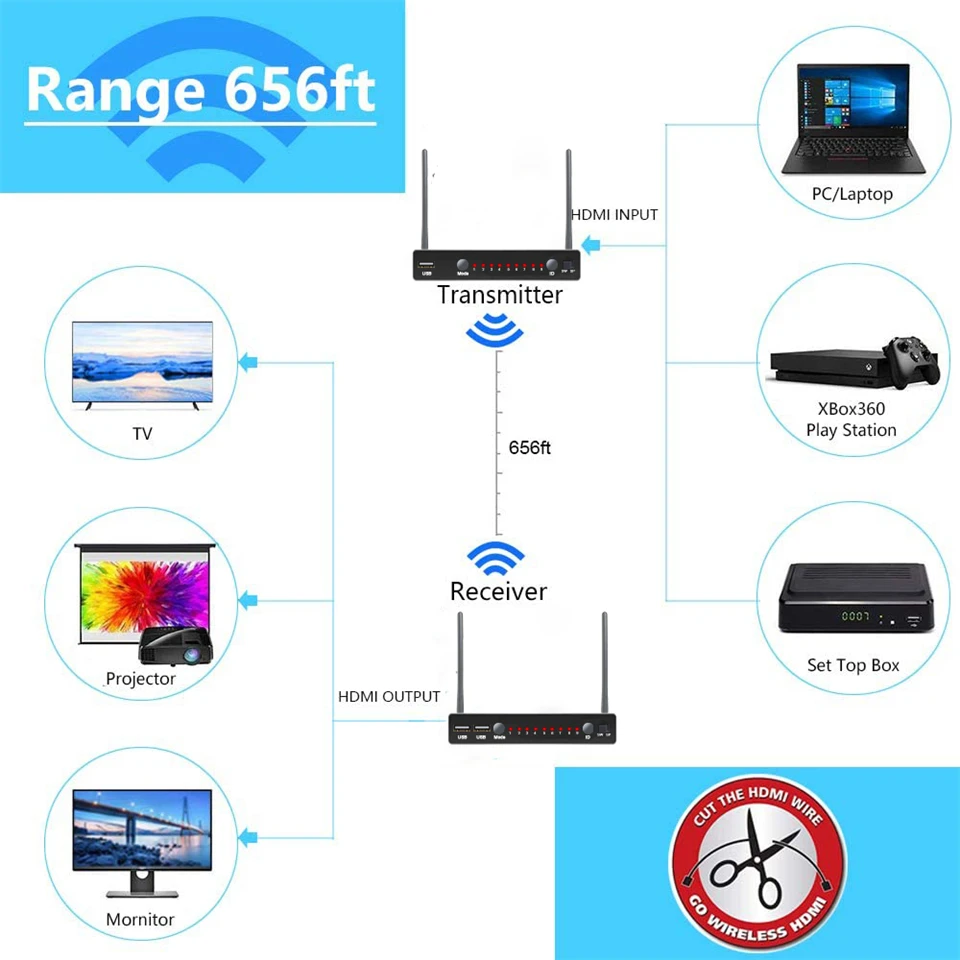

• Effective Range:656ft(200 meters no obstruction);

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

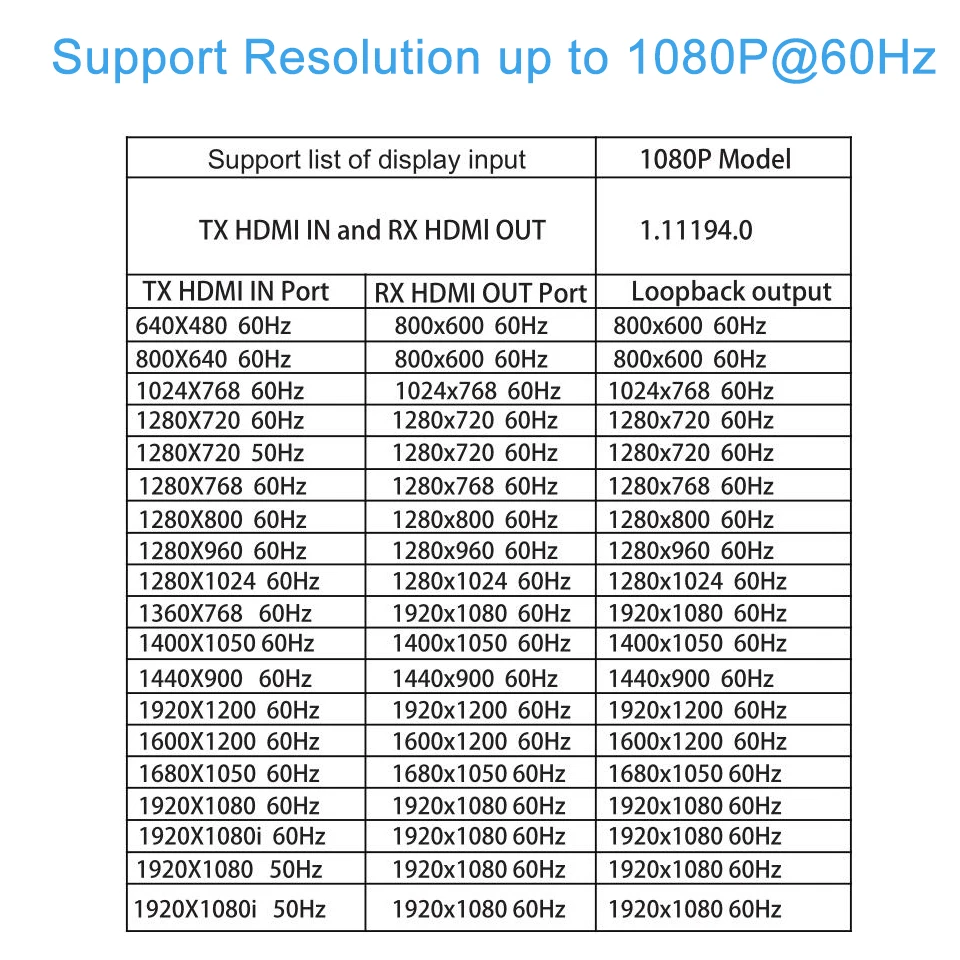

• Video resolution:up to 1920*1080P@60Hz;

•  frequency: 2.4/5.8 GHz;

• Radio Frequency power :13dbm;

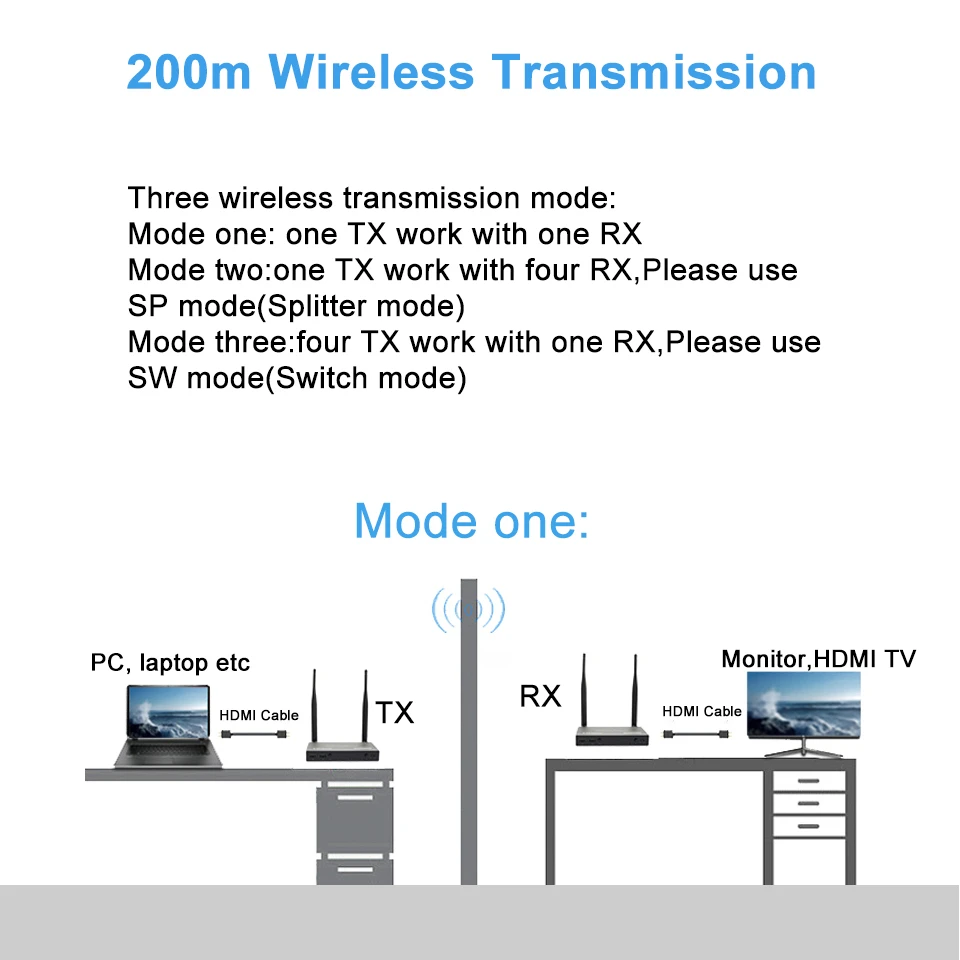

• Male to male:Unicast,one TX to one RX applicataion;

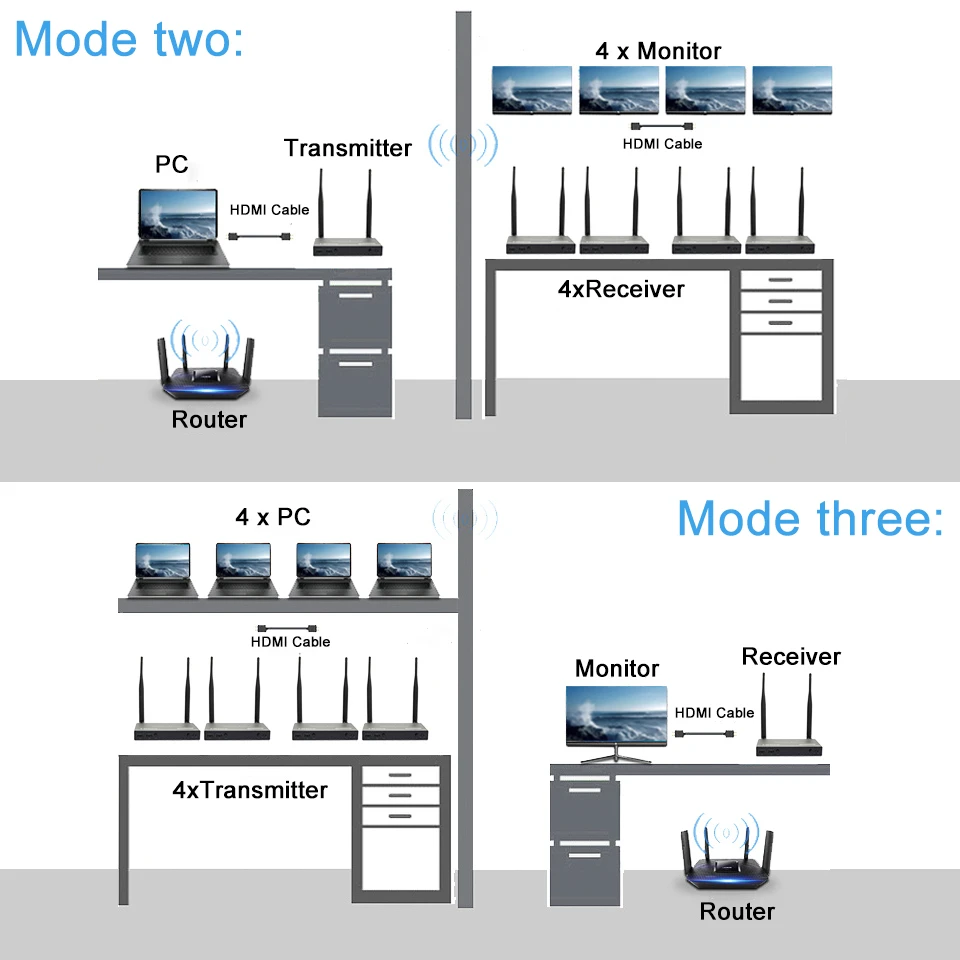

• Male to female:Splitter mode,one TX to 4 RX application;

• Female to male:Switch mode,Four TX to one RX application;

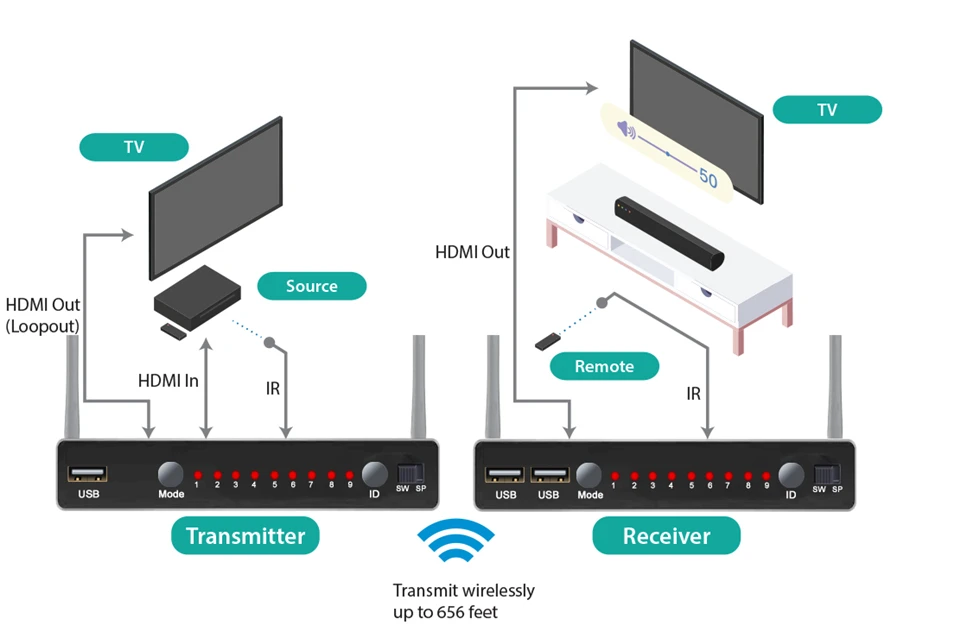

• Wide band Infrared control:unidirectional 20~60 KHz IR romote control;

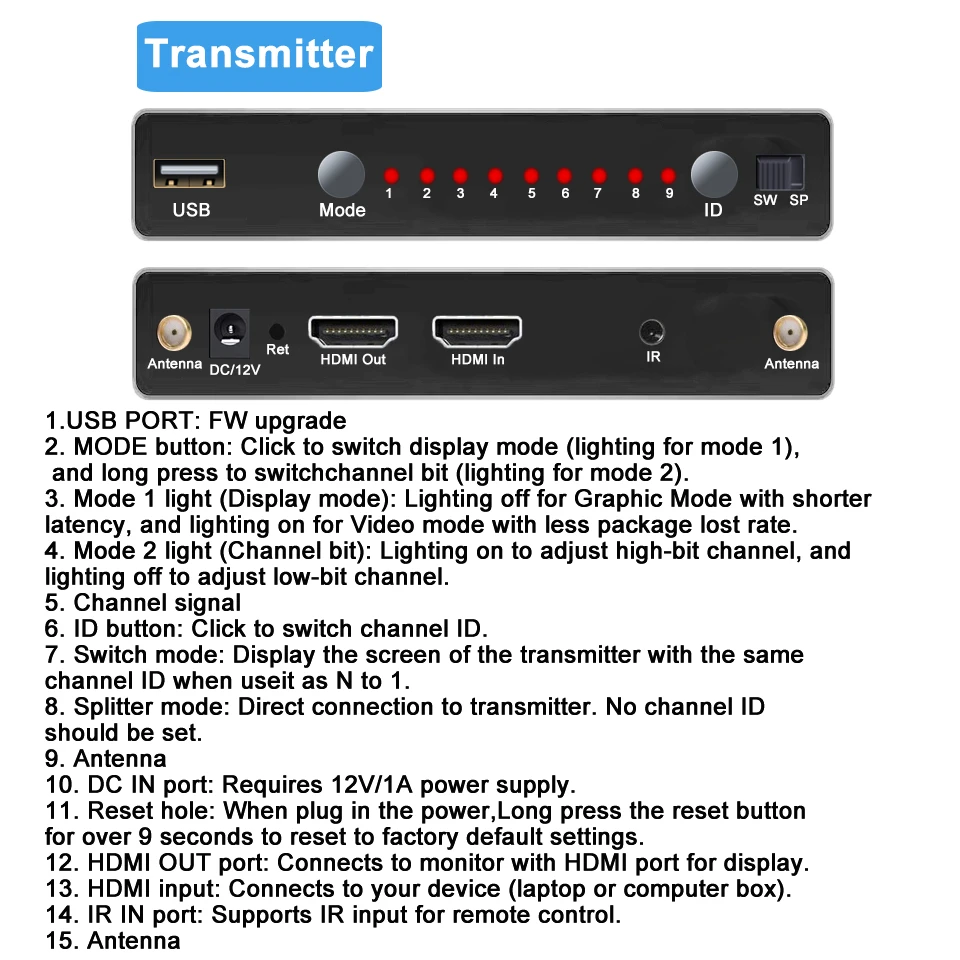

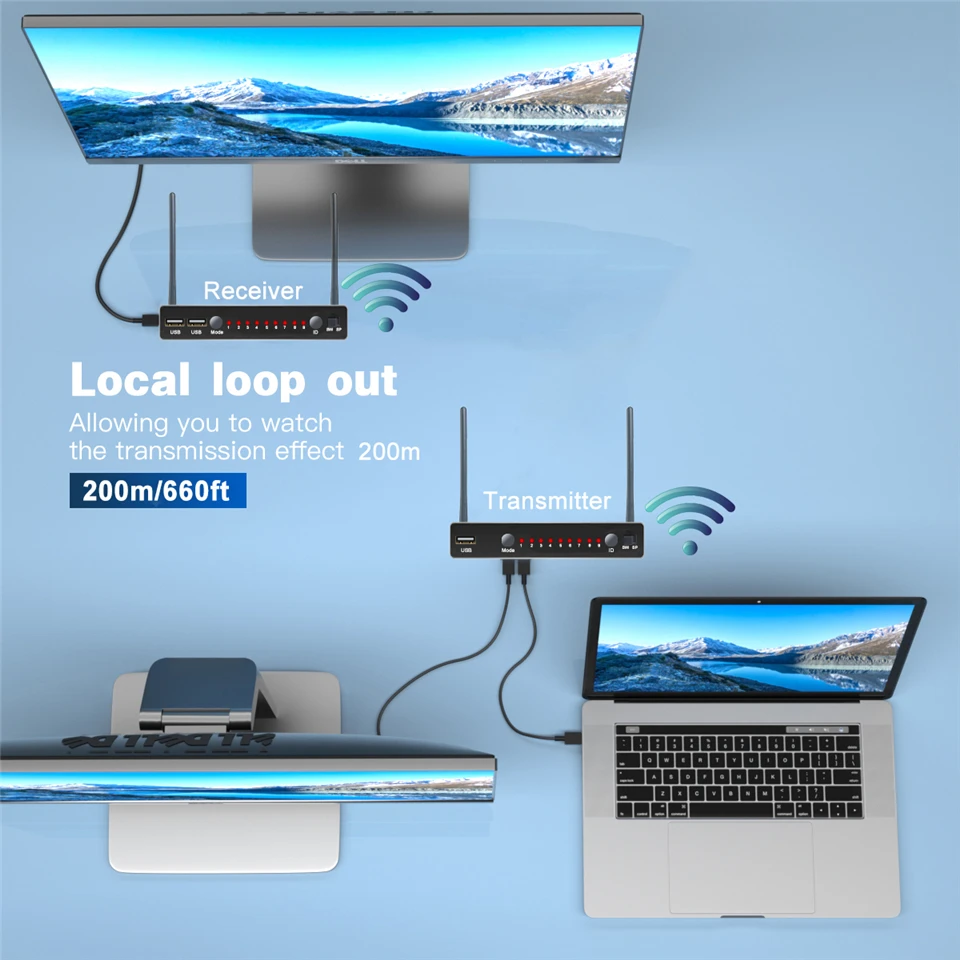

• Support transmitter with one HDMI loop out;

• Support keyboard and mouse (KVM) remote control;

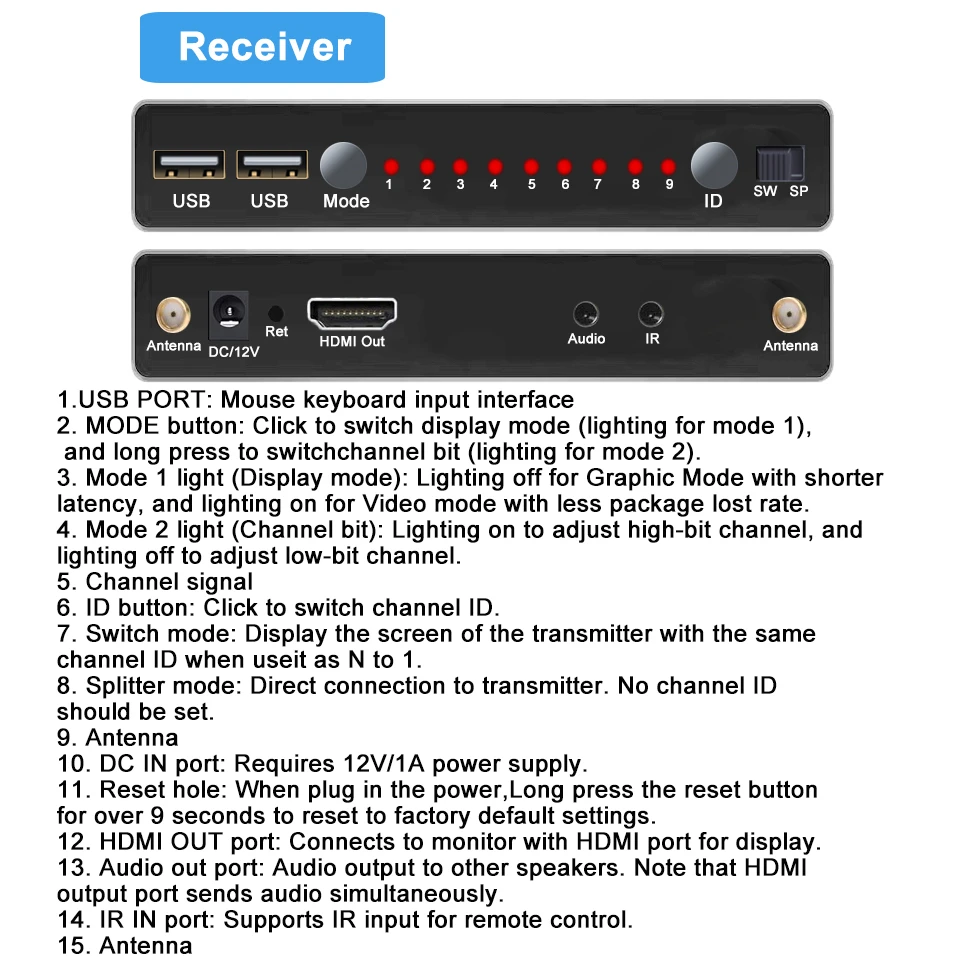

• Support receiver with audio extractor function;

• Low latency:Less than 70 ms;

• Compressed mode:H.264 technology;

• No cable:between sender (TX) and receiver (RX);

• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;

• High compatibility :match many kinds of display devices;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system:make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Note:

Transmission distance will be different due to the environment
Wall, brick or glass will shorten the signal cover range or cause big signal loss.

We simulated complex environment of different temperature, humidity and obstacles etc , obtain a series of real testing data, Average test result as follows:

1. Straight line distance without any obstacle, suggest 200m/656ft.

2. Straight line distance has wooden wall or glass wall, suggest 100m/328ft.

3. Straight line distance has reinforced concrete wall, suggest 30m/100ft.

Specifications:

Video
Standards———-HDMI 1.3; HDCP 1.2
Maximum pixel clock——165MHz
Maximum data rate——-6.75Gbps
Resolution ——1920X1080P@60Hz
Connector—–HDMI-A
Impedance——–100O

Compress Formats—–H.264 technology

IR
Interface—-3.5mm seat
Signal direction——–Unidirectional
Signal type———-Digital
IR frequency——–20~60kHz

WIFI

Frequency—–2.4/5.8GHz
Transmission distance——–200m

Wireless Standard——802.11ac

Radio Frequency power ——-13dbm

Other
Power supply—–The power adapter: DC 12V/1A
Power dissipation——MAX 6W
Temperature——-Operating: -5 ~ +70
Humidity——-Operating: 5% ~ 90%
Dimension——-97*97*20mm
The warranty——–1 year free warranty

Trouble shooting :

1.Contact our customer service for installation guide.
2.Make sure power adapter is working fine by checking the power led in the front of the unit.
3.Audio Sync Issue: The sound should be from receiver. Do not directly connected to the source.
4.Power Issue: Please make sure the DC plug is secure in the units
5.Signal Issue: Our extenders use 2.4/5.8GHZ  Channel. Please make sure your home WiFi is not on the same channels.
5. IR issue:1,Check if the IR emitter head is secured over the center of the IR window of source device. This position maybe discrepant if you use different sources, try to adjust the position if the signal is weak. 2,The control signal will be better when your controller is pointed at the IR receiver head directly.

Package:

Wireless HDMI transmitter——– 1 pcs

Wireless HDMI receiver ———– 1 pcs

Power adapter———————-2 pcs

User manual————————1 pcs
