Placa do Filtro Retificador da Matriz do Capacitor Placa de Filtro de Alta Frequência de Baixa Impedância Baixa 50v 6580uf Esr 10000uf –

Opção de Compra e tempo de entrega

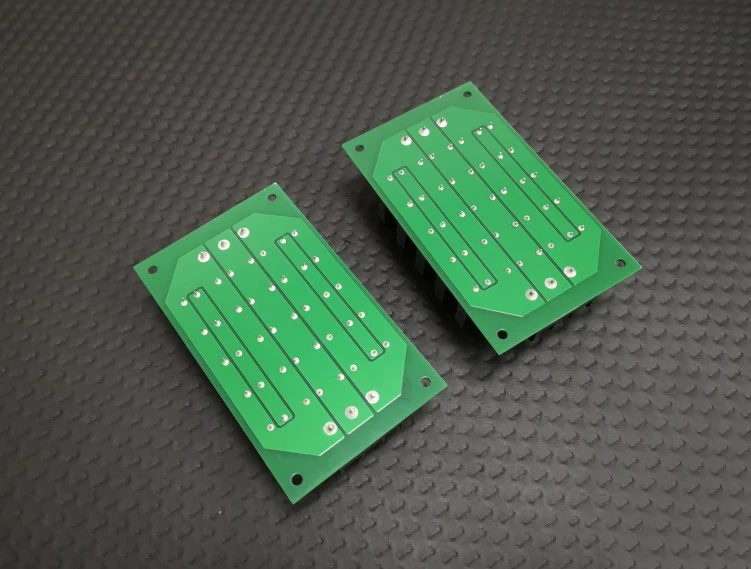

Filter capacitor array Filter board High frequency and low impedance filter capacitor board. Effectively improve the sound quality. The PCB board uses a double-sided glass fiber board with a beautiful appearance.

All electrolytic capacitors are used in parallel with high-quality high-frequency and low-resistance, effectively reducing power supply impedance.

Packing list:

1 *Finished board

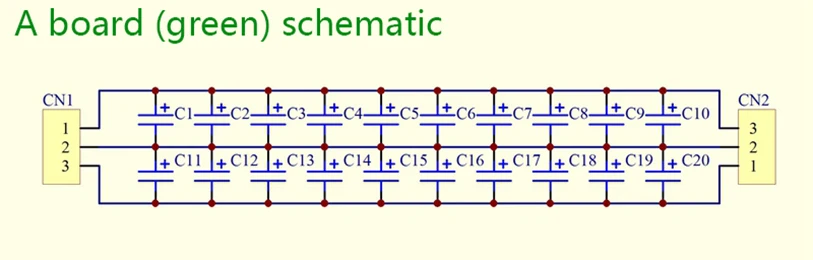

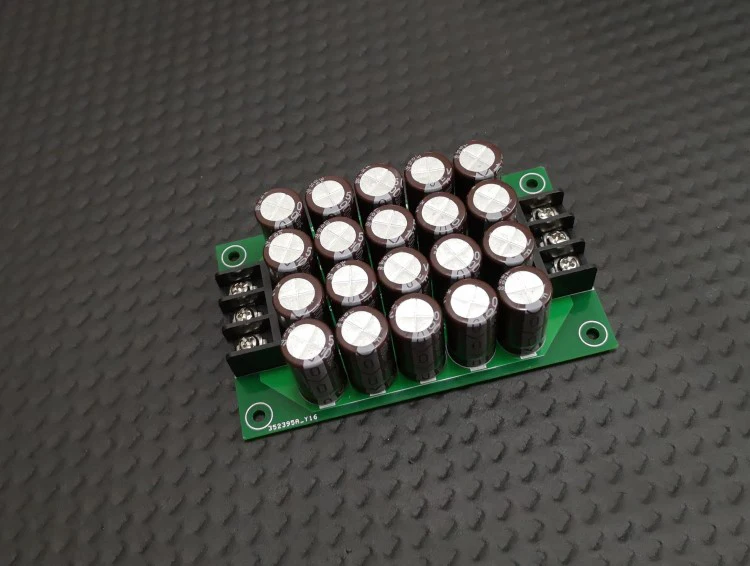

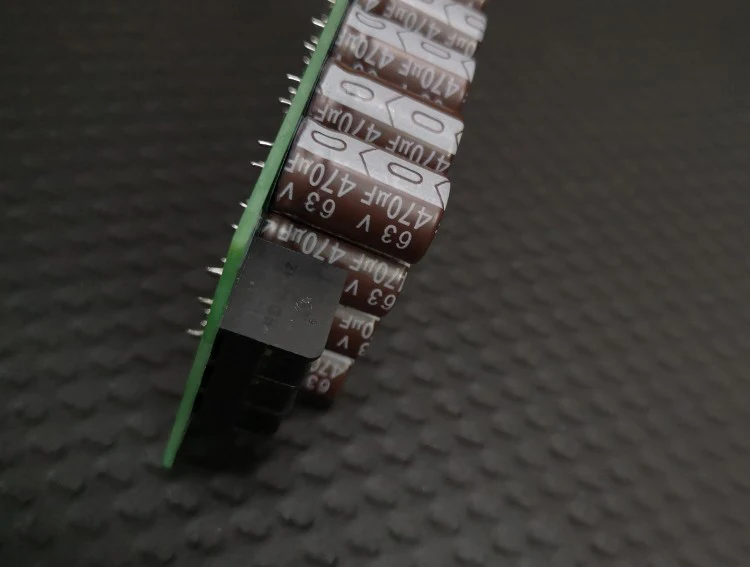

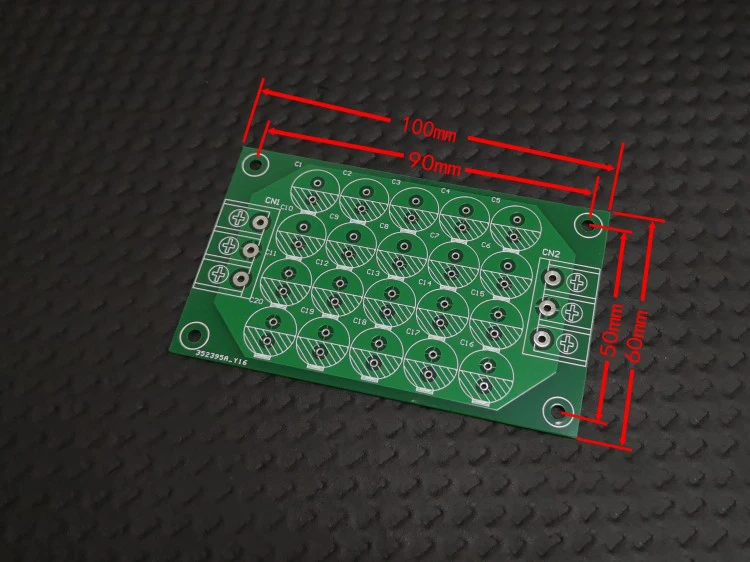

A board 470U63V 4700U63V

10 470uF/63V capacitors for both positive and negative are connected in parallel, which is equivalent to a 4700uF/63V capacitor bank for each positive and negative.

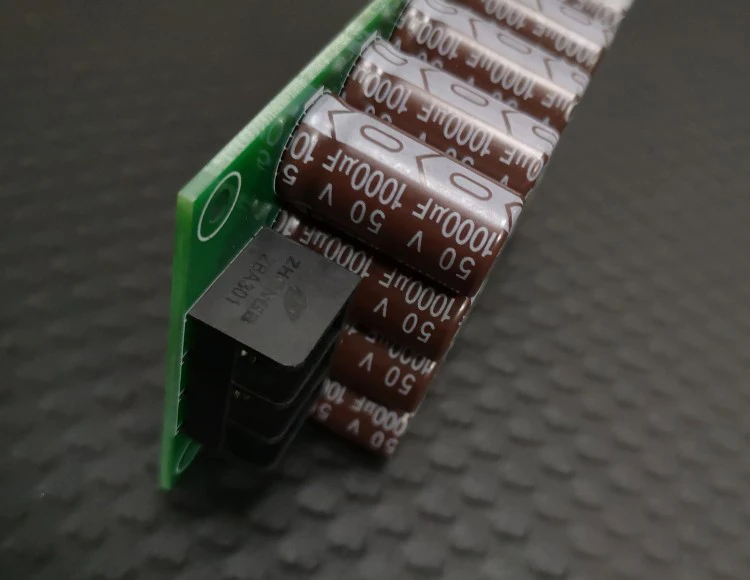

A board 1000U50V 10000U50V

10 1000uF/50V capacitors for both positive and negative are connected in parallel, which is equivalent to a 10000uF/50V capacitor bank for each positive and negative.

1. Eletrônicos – Certificado : None

2. de Baixa Impedância Baixa Esr 10000uf 50v 6580uf 50v – Nome da Marca : Supo

3. Placa do Filtro Retificador da Matriz do – Potência Máxima por Canal : Nenhuma Energia

4. Cheap Amplificador – Origem : cn Origem

5. Amplificador – Certificado : None

6. Capacitor Placa de Filtro de Alta Frequência – Nome da Marca : Supo

============================================

B board 470U63V 6580U63V

There are 14 470uF/63V capacitors in parallel for each positive and negative, which is equivalent to a 6580uF/50V capacitor bank for each positive and negative.

B board 1000U50V 14000U50V

There are 14 1000uF/50V capacitors in parallel for each positive and negative, which is equivalent to a 14000uF/50V capacitor bank for each positive and negative.

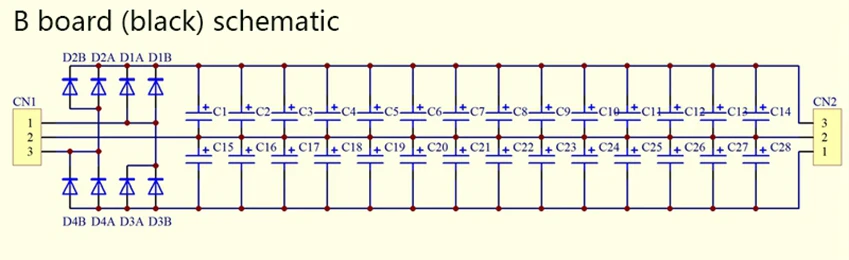

B board (black) schematic

7. High Quality Eletrônicos – Potência Máxima por Canal : Nenhuma Energia

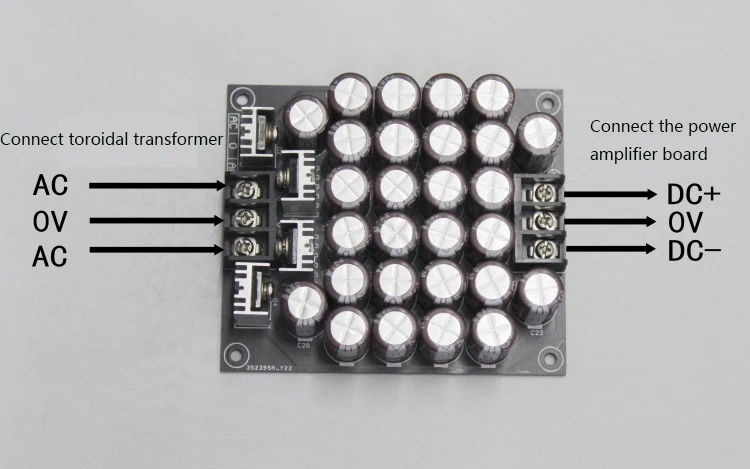

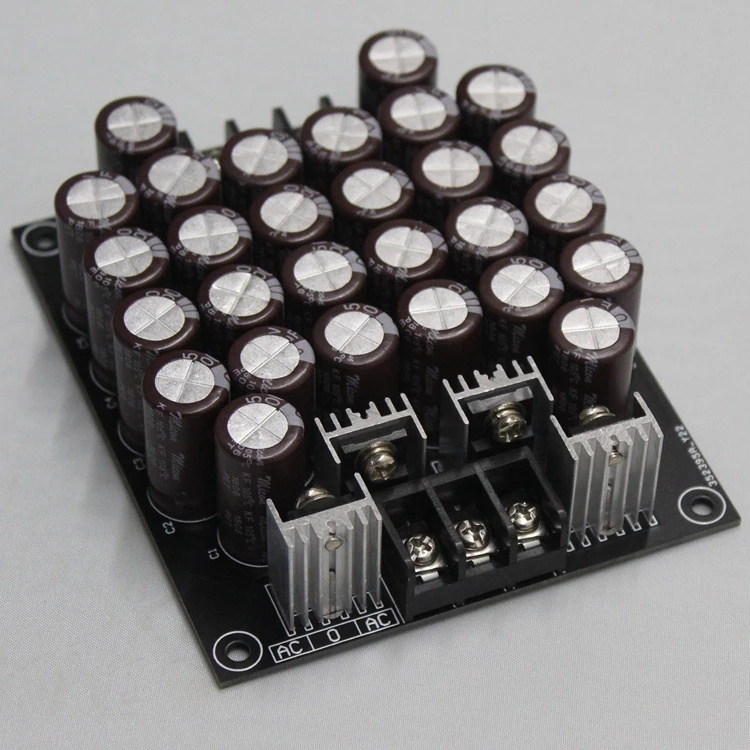

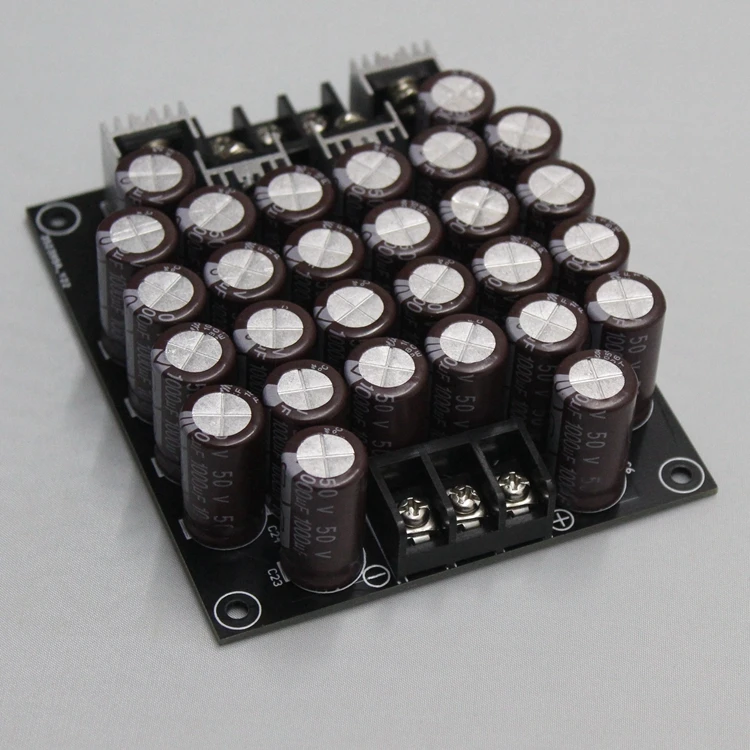

Each of the positive and negative voltages uses 14 low ESR electrolytic capacitors with a diameter of 13mm. PCB adopts matt black double-sided glass fiber board. The rectifier bridge uses four 20A 200V Schottky diodes, which have lower internal resistance than ordinary high-voltage rectifier bridges.

8. Eletrônicos – Origem : cn Origem

9. de Baixa Impedância Baixa Esr 10000uf 50v 6580uf 50v – Certificado : None

10. Placa do Filtro Retificador da Matriz do – Nome da Marca : Supo

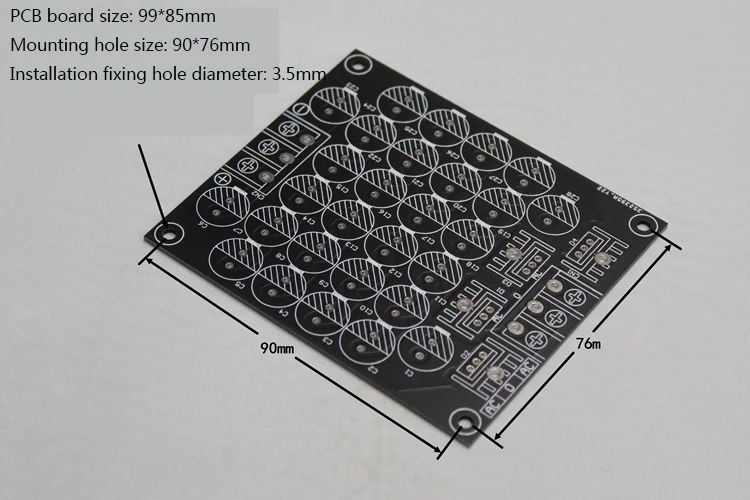

PCB board size: 99*85mm Mounting hole size: 90*76mm Installation fixing hole diameter: 3.5mm

11. Cheap Amplificador – Potência Máxima por Canal : Nenhuma Energia
