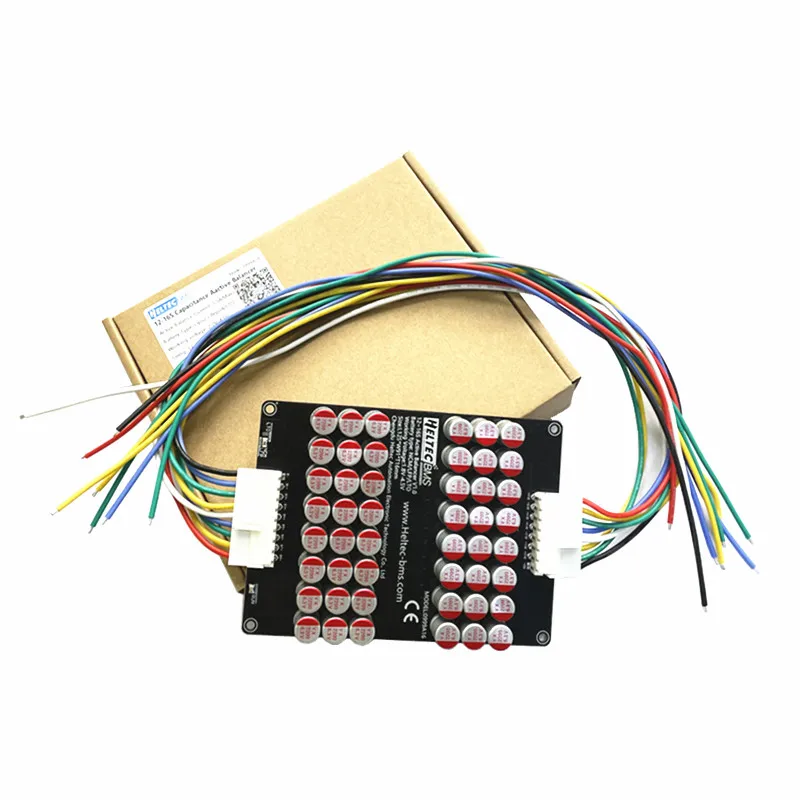

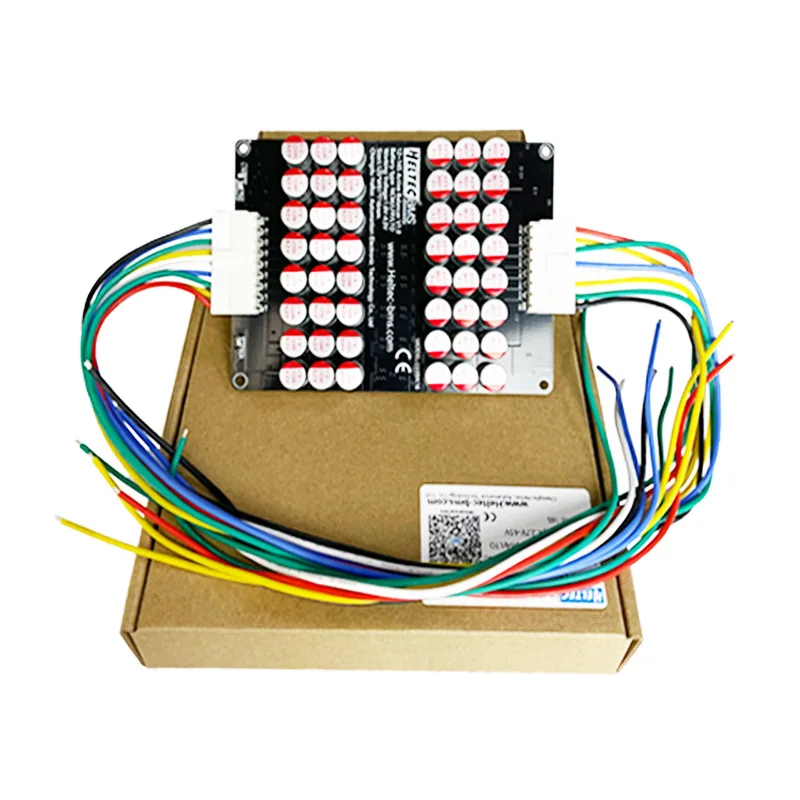

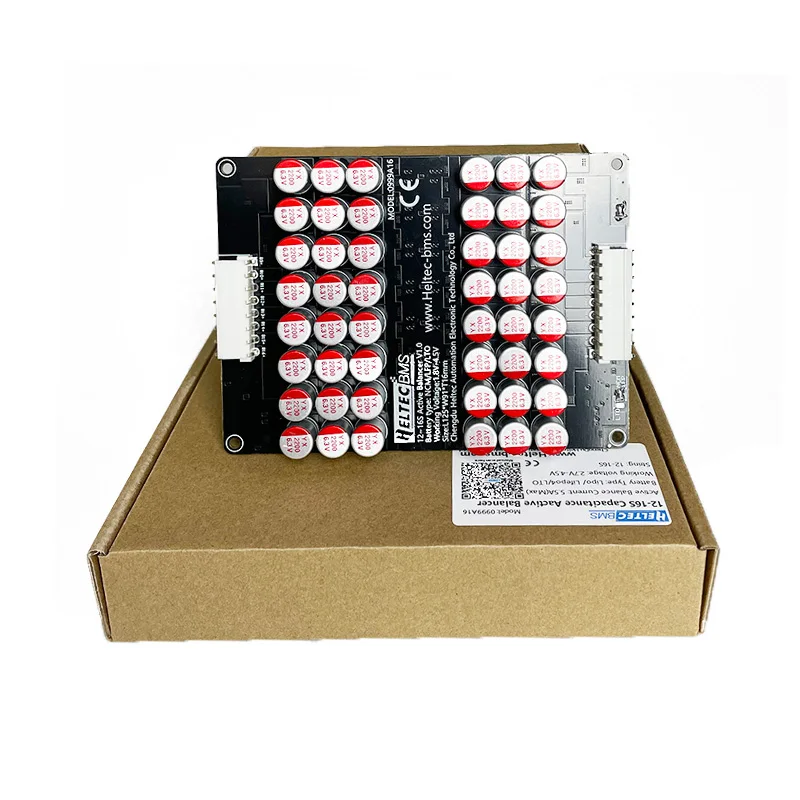

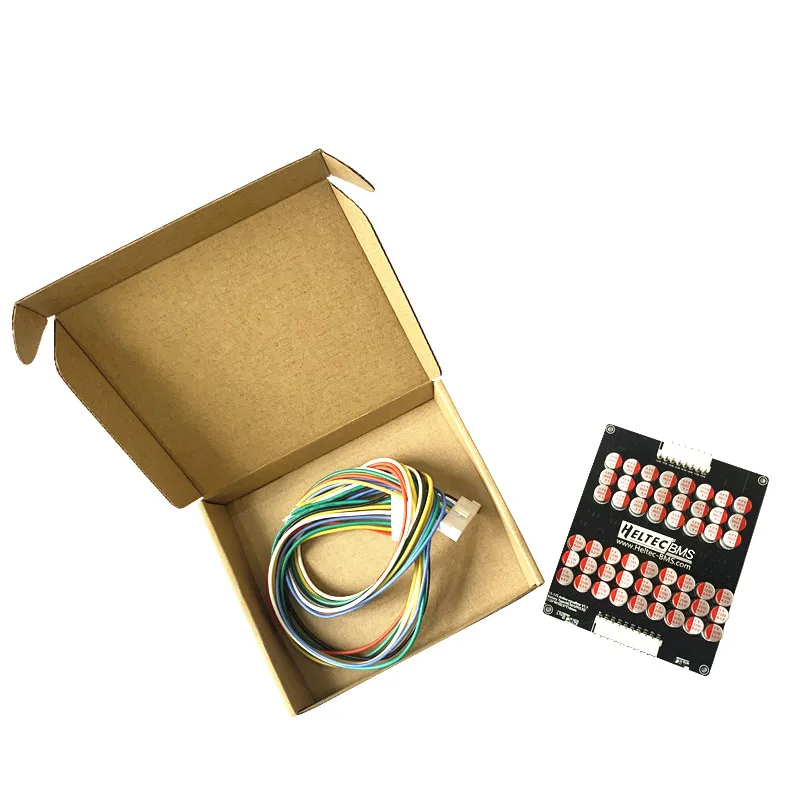

Heltec 16s 5a Capacitor Ativo Equalizador Balanceador Lifepo4 Lipo Lítio Titanate Lto para Bateria Grupo Balanceador 12s 13s 15s
R$ 291,66
DÚVIDAS?
Envie um email para:
Acessórios Para Baterias
Vídeo de Demonstração do Produto
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Número do Modelo | 099a Acitive BMS Board |
| Tipo de Acessório | Acessórios de Bateria |
| Nome da Marca | Heltecbms |
| Origem | CN (origem) |
| Current | 5A 6A Active Balancer |
| String | 12-16s Active Equalizer Balancer |
Feture

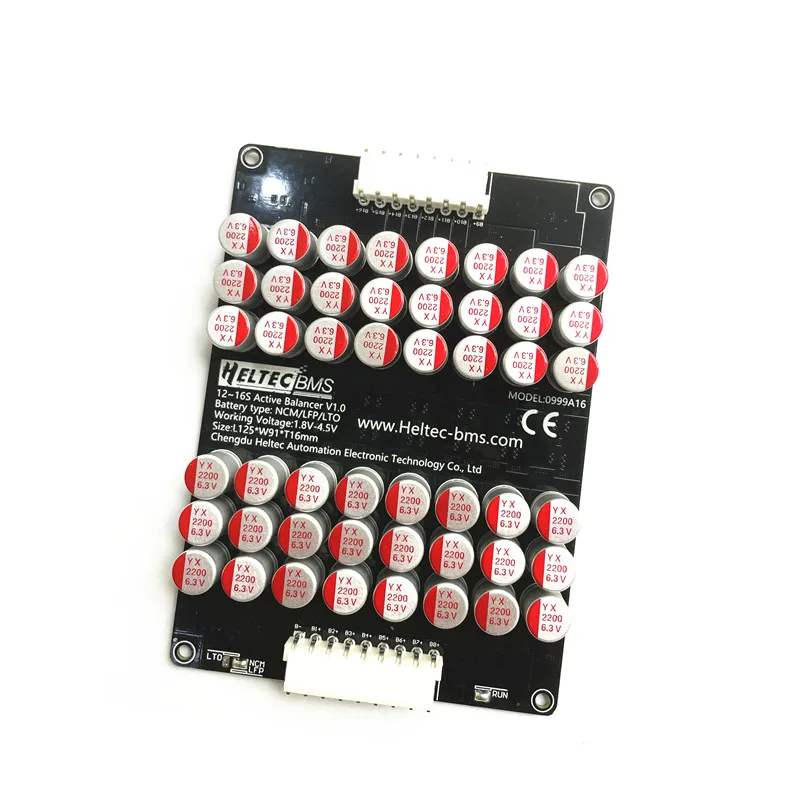

12-16S Size: 125*91*16mm
Measured fault battery pack combination 4 string 25Ah equalization curve
As the battery battery cycle times increase, the battery capacity decay speed is inconsistent, causing the battery voltage to be seriously out of balance. The battery barrel effect will cause the battery to charge. The BMS system detects that the battery has entered the overcharge protection in advance. In fact, only one of the batteries is full, or let The BMS system detects that the battery enters the over-discharge protection state, which is actually caused by over-discharge of one of the lower-voltage batteries. After the device acts, each battery voltage reduces the capacity attenuation caused by the battery barrel effect and prolongs the problem. The battery pack has a service life.
Feture
Working voltage: 1.8V-4.5V
Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

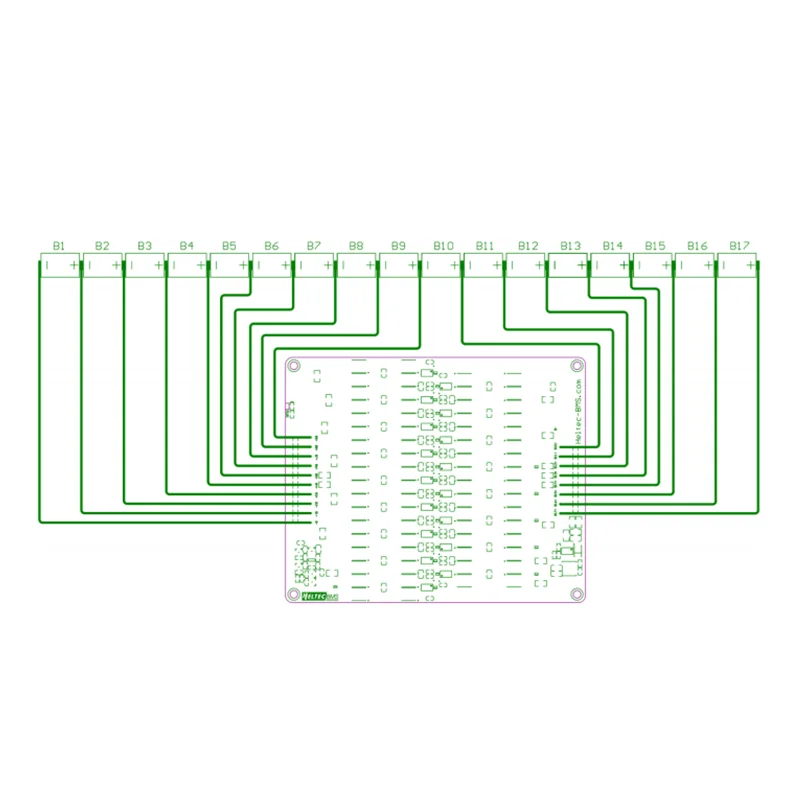

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB
Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
1. Fontes de Alimentação – tipo de Material : Abs Plastic
Package Include
2. para Nivelamento – Características Especiais : Window Switch
3. Heltec 16s 5a Capacitor Ativo Equalizador Balanceador – Size : Original Factory Same
